Kun suorituskyky ratkaisee
Tehoa ja nopeutta tuotantoosi. Robotti, joka tuo energiansäästöä, alentaa kuluja ja parantaa tuottavuutta.
| Number of axes | 6 |
| Maximum wrist payload (Kg) | 210 |
| Additional load on forearm (Kg) | 25 |
| Maximum horizontal reach (mm) | 3151 |
| Torque on axis 4 (Nm) | 1177 |
| Torque on axis 5 (Nm) | 1177 |
| Torque on axis 6 (Nm) | 677 |
| Stroke on Axis 1 | +/- 180° (110°/s) |
| Stroke on Axis 2 | -50°/ +170° (90°/s) |
| Stroke on Axis 3 | -21.3°/-288° (110°/s) |
| Stroke on Axis 4 | +/- 2700° (130°/s) |
| Stroke on Axis 5 | +/- 125° (130°/s) |
| Stroke on Axis 6 | +/- 2700° (195°/s) |
| Repeatability (mm) | 0.10 mm |
| Tool coupling flange | ISO 9409 – 1 – A 160 |
| Robot weight (Kg) | 1415 kg |
| Protection class | IP65 / IP67 Wrist |
| Mounting position | Shelf |
| Operating Areas A (mm) | 2801 mm |
| Operating Areas B (mm) | 3151 mm |
| Operating Areas C (mm) | 547 mm |
| Operating Areas D (mm) | 93 mm |
| Operating Areas E (mm) | 1800 mm |
| Operating Areas F (mm) | 850 mm |

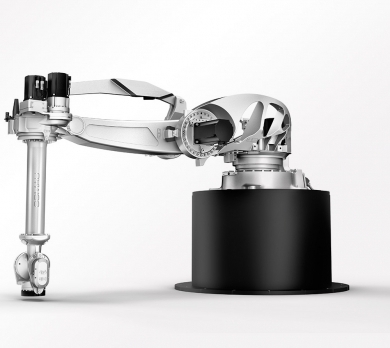

What NJ 210 – 3.1 SH can do
Assembly, Cosmetic sealing, Dispensing, Handling / Packaging, Laser welding cutting, Machine tending, Measuring / Testing, Plasma cutting/ water jet, Polishing and Deburring, Press brake-bending, Process machining, Wood/glass machining, Spot welding, Vision System, Press to press
NJ 210 – 3.1 SH works with
Controllers CG5
Teach Pendant TP5
NJ 210 – 3.1 SH auxiliary systems
Positioners MP TR PDTV PTDO
External Axes External Axes
Slides TMF
Payload: High 60-300 KG
Reach: >3
Application: Assembly, Cosmetic sealing, Dispensing, Handling / Packaging, Laser welding cutting, Machine tending, Measuring / Testing, Plasma cutting/ water jet, Polishing and Deburring, Press brake-bending, Process machining, Wood/glass machining, Spot welding, Vision System, Press to press
Industry: Machine Automation, Metal and Arc Welding, Electronics, Consumer Goods, Automotive, Edu, Business Development
