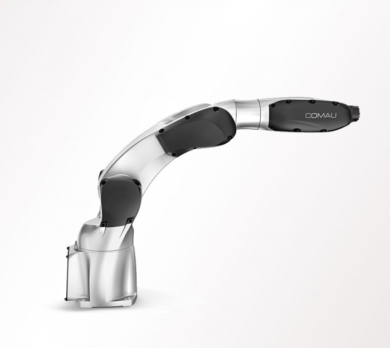

Pienten teollisuusrobottien edelläkävijä
Uudet Racer-robotit tarjoavat parasta tehokkuutta ja huipputeknologiaa pienten teollisuusrobottien luokassa. Racer yhdistää nopeuden, sulavaliikkeisyyden ja tyylikkään italialaisen muotoilun ja asettaa riman uudelle korkeudelle luokassaan.
| Number of axes | 6 |
| Maximum wrist payload | 5 kg |
| Maximum horizontal Reach (Radius) | 809 mm |
| Torque on axis 4 (Nm) | 8.83 Nm |
| Torque on axis 5 (Nm) | 8.83 Nm |
| Torque on axis 6 (Nm) | 4.91 Nm |
| Stroke on Axis 1 | +/- 170° (360°/s) |
| Stroke on Axis 2 | -95°/ +135° (300°/s) |
| Stroke on Axis 3 | -155° / +90° (330°/s) |
| Stroke on Axis 4 | +/- 210° (500°/s) |
| Stroke on Axis 5 | +/- 125° (500°/s) |
| Stroke on Axis 6 | +/- 2700° (800°/s) |
| Repeatability (mm) | 0.03 mm |
| Tool coupling flange | ISO 9409 – 1 – A 40 |
| Robot weight (Kg) | 32 kg |
| Protection class | IP54 (IP65 Option) |
| Mounting position | Floor / Ceiling / Wall (Allowable with payload limitations) |
| Operating Areas A (mm) | 1124 mm |
| Operating Areas B (mm) | 809 mm |
| Operating Areas C (mm) | 8 mm |
| Operating Areas D (mm) | 708 mm |
| Operating Areas E (mm) | 286 mm |
What Racer 5-0.80 can do
Assembly, Dispensing, Handling / Packaging, Machine tending
Racer 5-0.80 works with
Controllers R1C
Teach Pendant TP5
Racer 5-0-80 auxiliary systems
External Axes External Axes
Slides TMF
Payload: Small 0-16 KG
Reach: up to 1
Application: Assembly, Dispensing, Handling / Packaging, Machine tending
Industry: Metal and Arc Welding, Electronics, Plastic
