Innovatiivistä suorituskykyä

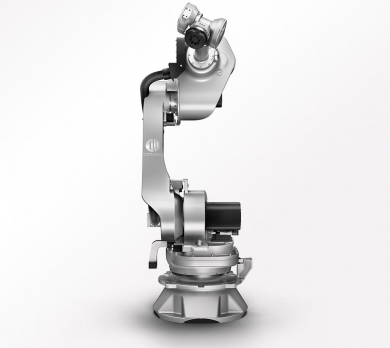

NS-robotit on suunniteltu erityisesti suurta tarkkuutta ja nopeutta vaativiin tehtäviin. Nämä robotit sopivat erinomaisesti mm. asennukseen, kappaleenkäsittelyyn, koneistukseen ja kaarihitsaukseen.
| Number of axes | 6 |
| Maximum wrist payload (Kg) | 12 |
| Additional load on forearm (Kg) | 10 |
| Maximum horizontal reach (mm) | 1850 |
| Torque on axis 5 (Nm) | 39 Nm |
| Torque on axis 5 (Nm) | 39 Nm |
| Torque on axis 6 (Nm) | 20 Nm |
| Stroke on Axis 1 | +/- 180° (155°/s) |
| Stroke on Axis 2 | -60°/ +155° (155°/s) |
| Stroke on Axis 3 | -170° / +110° (170°/s) |
| Stroke on Axis 4 | +/- 2700° (360°/s) |
| Stroke on Axis 5 | +/- 120° (350°/s) |
| Stroke on Axis 6 | +/- 2700° (550°/s) |
| Repeatability (mm) | 0.05 mm |
| Tool coupling flange | ISO 9409 – 1 – A63 |
| Robot weight (Kg) | 335 kg |
| Protection class | IP65 / IP67 |
| Mounting position | Floor / Ceiling / Sloping (45° max) |
| Operating Areas A (mm) | 2150 mm |
| Operating Areas B (mm) | 1850 mm |
| Operating Areas C (mm) | 950 mm |
| Operating Areas D (mm) | 1157 mm |
| Operating Areas E (mm) | 885 mm |
What NS 12 – 1.85 can do
Arc welding, Assembly, Cosmetic sealing, Dispensing, Handling / Packaging, Machine tending, Measuring / Testing, Polishing and Deburring, Vision System
NS 12 – 1.85 works with
Controllers CG5 C5 Compact
Teach Pendant TP5
NS 12 – 1.85 auxiliary systems
Positioners MP TR PDTV PTDO
External Axes External Axes
Slides TMF
Payload: Small 0-16 KG
Reach: 1-2
Application: Arc welding, Assembly, Cosmetic sealing, Dispensing, Handling / Packaging, Machine tending, Measuring / Testing, Polishing and Deburring, Vision System
Industry: Machine Automation, Metal and Arc Welding, Electronics, Consumer Goods, Automotive, Edu, Business Development
