Valmis toimintaan

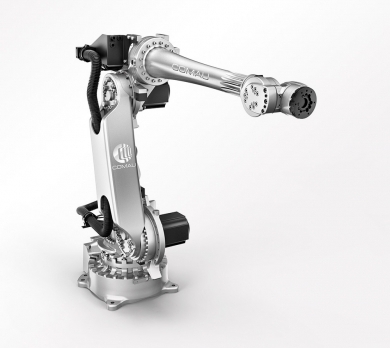

Kevyt, kompakti ja nopea. NJ-robotit tarjoavat poikkeuksellisen tarkkaa liikeratojen hallintaa ja tuovat tehokkuutta moniin erilaisiin tehtäviin.
| Number of axes | 6 |
| Maximum wrist payload (Kg) | 40 |
| Additional load on forearm (Kg) | 35 |
| Maximum horizontal reach (mm) | 2503 |
| Torque on axis 5 (Nm) | 167 Nm |
| Torque on axis 5 (Nm) | 167 Nm |
| Torque on axis 6 (Nm) | 98 Nm |
| Stroke on Axis 1 | +/- 180° (170°/s) |
| Stroke on Axis 2 | -60°/ +125° (150°/s) |
| Stroke on Axis 3 | -170° / +110° (170°/s) |
| Stroke on Axis 4 | +/- 165° (165°/s) |
| Stroke on Axis 5 | +/- 2700° (265°/s) |
| Stroke on Axis 6 | +/- 2700° (340°/s) |
| Repeatability (mm) | 0.06 mm |
| Tool coupling flange | ISO 9409 – 1 – A100 |
| Robot weight (Kg) | 655 kg |
| Protection class | IP65 / IP67 |
| Mounting position | Floor / Ceiling / Sloping (45° max) |
| Operating Areas A (mm) | 2653 mm |
| Operating Areas B (mm) | 2503 mm |
| Operating Areas C (mm) | 2165 mm |
| Operating Areas D (mm) | 720 mm |
| Operating Areas E (mm) | 1187 mm |
What NJ 40 – 2.5 can do
Arc welding, Assembly, Cosmetic sealing, Dispensing, Handling / Packaging, Laser welding cutting, Machine tending, Measuring / Testing, Plasma cutting/ water jet, Polishing and Deburring, Press brake-bending, Process machining, Wood/glass machining, Vision System
NJ 40 – 2.5 works with
Controllers CG5
Teach Pendant TP5
NJ 40 – 2.5 auxiliary systems
Positioners MP TR PDTV PTDO
External Axes External Axes
Slides TMF
Payload: Small 0-16 KG
Reach: 2-3
Application: Arc welding, Assembly, Cosmetic sealing, Dispensing, Handling / Packaging, Laser welding cutting, Machine tending, Measuring / Testing, Plasma cutting/ water jet, Polishing and Deburring, Press brake-bending, Process machining, Wood/glass machining, Vision System
Industry: Machine Automation, Metal and Arc Welding, Electronics, Consumer Goods, Automotive, Edu, Business Development
