Automaatiota prässäykseen
Erityisesti prässäykseen suunnitellut robotit on testattu vaativissa teollisuussovelluksissa ja ne tarjoavat tehokkuutta tuotantoon.
| Number of axes | 6 |
| Maximum wrist payload (Kg) | 130 |
| Additional load on forearm (Kg) | 15 |
| Maximum horizontal reach (mm) | 3741 |
| Torque on axis 4 (Nm) | 1225 |
| Torque on axis 5 (Nm) | 1225 |
| Torque on axis 6 (Nm) | 648 |
| Stroke on Axis 1 | +/- 180° (120°/s) |
| Stroke on Axis 2 | -60°/ +170° (95°/s) |
| Stroke on Axis 3 | -292°/-21° (112°/s) |
| Stroke on Axis 4 | +/- 2700° (180°/s) |
| Stroke on Axis 5 | +/- 125° (175°/s) |
| Stroke on Axis 6 | +/- 2700° (250°/s) |
| Repeatability (mm) | 0.2 mm |
| Tool coupling flange | ISO 9409 – 1 – A 160 |
| Robot weight (Kg) | 1520 kg |
| Protection class | IP44 / IP65 Wrist |
| Mounting position | Shelf |
| Operating Areas A (mm) | 3391 mm |
| Operating Areas B (mm) | 3741 mm |
| Operating Areas C (mm) | 712 mm |
| Operating Areas D (mm) | 2386 mm |
| Operating Areas E (mm) | 850 mm |

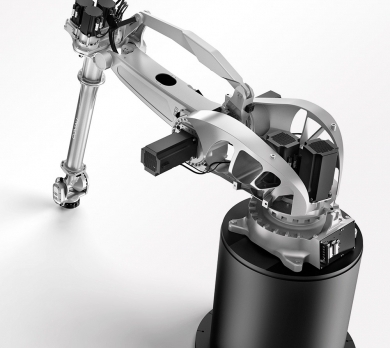

What NJ 130 – 3.7 SH can do
Handling / Packaging, Palletizing, Vision System
NJ 130 – 3.7 SH works with
Controllers CG5
Teach Pendant TP5
NJ 130 – 3.7 SH auxiliary systems
Positioners MP TR PDTV PTDO
External Axes External Axes
Slides TMF
Payload: High 60-300 KG
Reach: >3
Application: Handling / Packaging, Palletizing, Vision System
Industry: Machine Automation, Electronics, Consumer Goods, Automotive, Edu, Business Development
