Kun suorituskyky ratkaisee
Tehoa ja nopeutta tuotantoosi. Robotti, joka tuo energiansäästöä, alentaa kuluja ja parantaa tuottavuutta.
| Number of axes | 6 |
| Maximum wrist payload (Kg) | 110 |
| Additional load on forearm (Kg) | 50 |
| Maximum horizontal reach (mm) | 2980 |
| Torque on axis 5 (Nm) | 638 Nm |
| Torque on axis 5 (Nm) | 638 Nm |
| Torque on axis 6 (Nm) | 314 Nm |
| Stroke on Axis 1 | +/- 180° (110°/s) |
| Stroke on Axis 2 | +95°/ -75° (110°/s) |
| Stroke on Axis 3 | -10° / -256° (110°/s) |
| Stroke on Axis 4 | +/- 280° (190°/s) |
| Stroke on Axis 5 | +/- 120° (190°/s) |
| Stroke on Axis 6 | +/- 2700° (230°/s) |
| Repeatability (mm) | 0.07 mm |
| Tool coupling flange | ISO 9409 – 1 – A 125 |
| Robot weight (Kg) | 1070 kg |
| Protection class | IP65 / IP67 |
| Mounting position | Floor / Ceiling |
| Operating Areas A (mm) | 3460 mm |
| Operating Areas B (mm) | 2980 mm |
| Operating Areas C (mm) | 2642 mm |
| Operating Areas D (mm) | 757 mm |
| Operating Areas E (mm) | 783 mm |

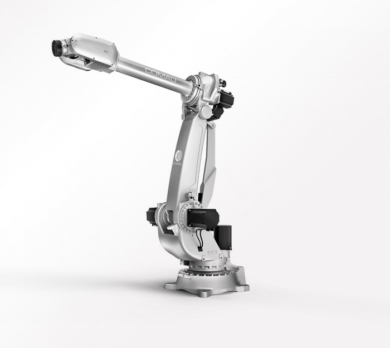

What NJ 110 – 3.0 can do
Assembly, Cosmetic sealing, Dispensing, Handling / Packaging, Laser welding cutting, Machine tending, Measuring / Testing, Plasma cutting/ water jet, Polishing and Deburring, Press brake-bending, Process machining, Wood/glass machining, Spot welding, Vision System
NJ 110 – 3.0 works with
Controllers CG5
Teach Pendant TP5
NJ 110 – 3.0 auxiliary systems
Positioners MP TR PDTV PTDO
External Axes External Axes
Slides TMF
Payload: High 60-300 KG
Reach: 2-3
Application: Assembly, Cosmetic sealing, Dispensing, Handling / Packaging, Laser welding cutting, Machine tending, Measuring / Testing, Plasma cutting/ water jet, Polishing and Deburring, Press brake-bending, Process machining, Wood/glass machining, Spot welding, Vision System
Industry: Machine Automation, Metal and Arc Welding, Electronics, Consumer Goods, Automotive, Edu, Business Development
